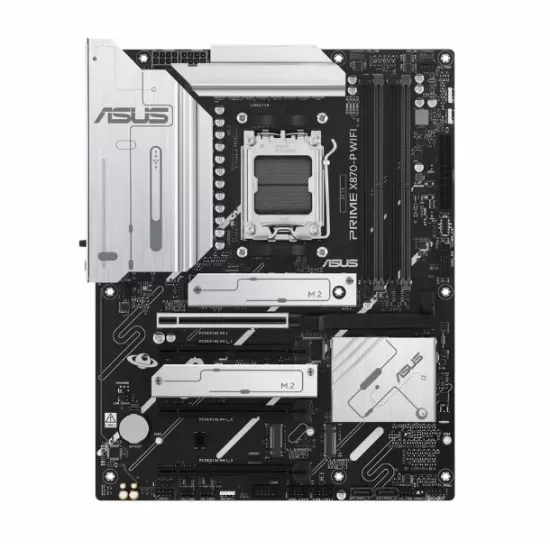

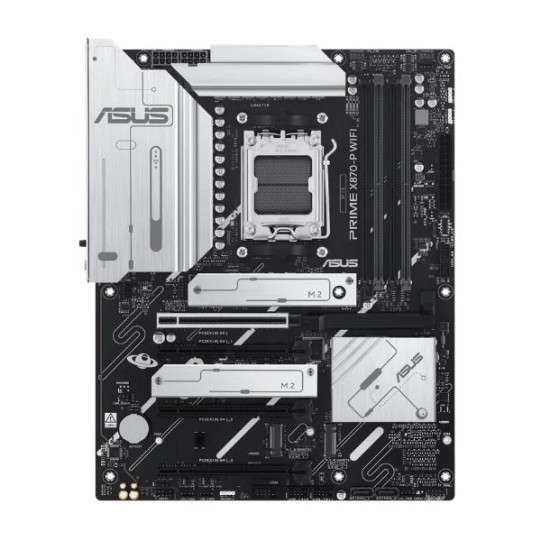

Asus Prime X870-P Wifi

Model PRIME X870-P WIFI

News & Updates

Please refer to the global product page at the following link for the latest news and specifications.

https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p-wifi/techspec/

CPU

AMD Socket AM5 for AMD Ryzen? 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen? 9000 & 8000 & 7000 Series Processors

ECC and Non-ECC, Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO?)

ASUS Enhanced Memory Profile (AEMP)

* Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x HDMI? port**

2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

**** VGA resolution support depends on processors or graphic cards resolution.

Expansion Slots

AMD Ryzen? 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen? 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset

3 x PCIe 4.0 x16 slots (support x1 mode)***

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.

*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*

AMD Ryzen? 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen? 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD X870 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***

M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****

2 x SATA 6Gb/s ports****

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen? 9000 series CPU.

** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.

*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.

**** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.

Ethernet

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendors website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version m
